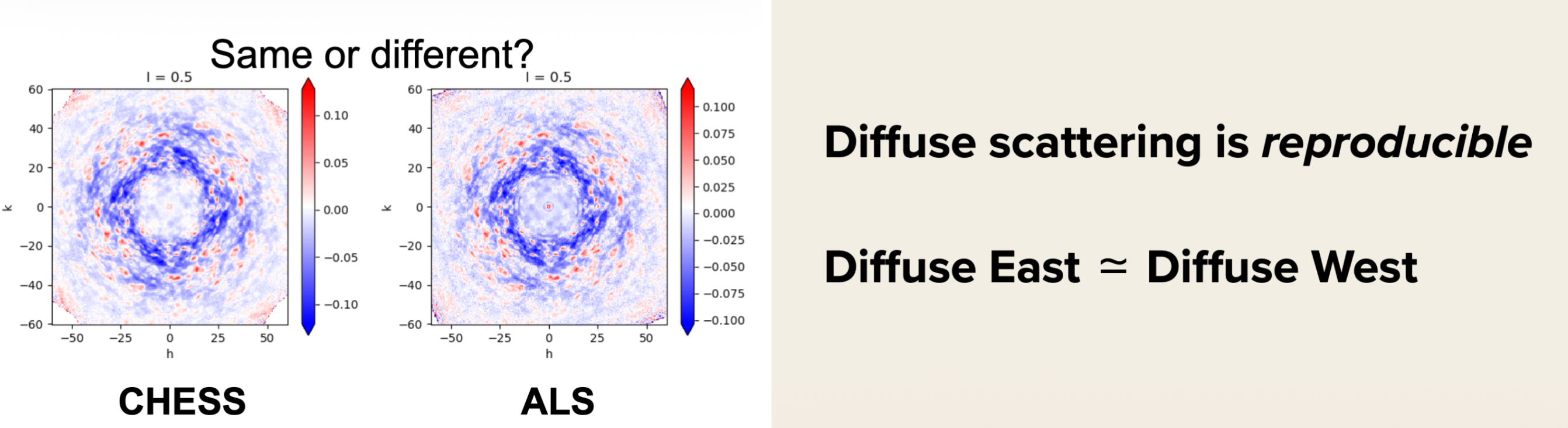

DiffUSE January 2026 Retreat: From Coast to Coast, Diffuse Scattering Reproduces

Why This Retreat Mattered

What Have We Accomplished Since October?

Data Collection

• •
  9 beamtimes since project inception across two synchrotrons (CHESS and ALS)
• •
  18 participants contributed to data collection
• •

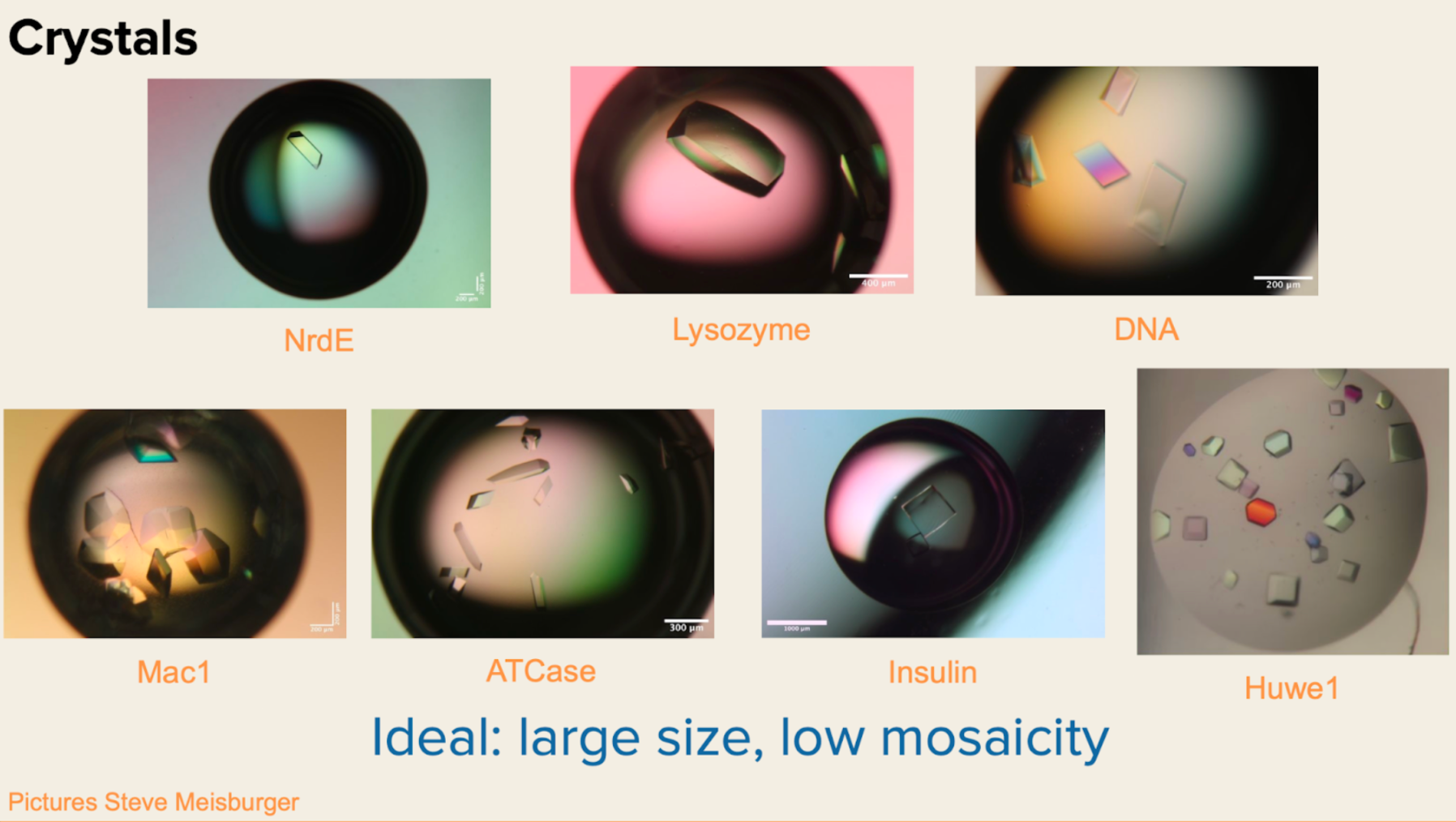

  7 protein systems: Mac1, NrdE, Lysozyme, DNA fibers, ATCase, Insulin, and Huwe1
• •
  129 "good" datasets collected (no data collection errors)

• •
  Temperature: Data collected at 100K (cryo), 220-275K (intermediate), and 310-315K (elevated), though sample handling for intermediate temperatures requires further optimization
• •
  Ligands: Mac1 + ADPr (11 datasets from CHESS and ALS combined) and Mac1 + small molecule "opener" (6 datasets from ALS)
• •
  Radiation damage mitigation: Vector scans implemented at CHESS to spread dose across radiation-sensitive samples like NrdE and ATCase

• •
  ALS: Explored dose dependence, wavelength effects, and exposure time optimization; addressed collimator ring scatter issues at 14 keV
• •
  CHESS: Continued X-ray aperture optimization for background reduction

• •
  Containerized deployment via conda install -c conda-forge mdx2
• •
  Jupyter Lab environment integration
• •
  Live processing capability on Voltage Park during beam times

Molecular Dynamics Simulations

• •
  Total correlation coefficient: CC = 0.96
• •
  Anisotropic correlation coefficient: CC = 0.56
• •
  Simulation: 2×2×2 supercell with OPC3 waters (279,004 atoms), neutron crystal structure 7TX3, 1100 ns unrestrained trajectory

• •
  Enrichment: Selectively removing MD frames to increase diffuse correlation
• •
  Reweighting: Using JAX to optimize frame weights via differentiable Pearson CC maximization. Initial test on experimental diffuse data achieved CC = 0.97 with 47,150 reflections to 3.5 Å resolution (work by Karson Chrispens, documented in a DiffUSE blog post)

Machine Learning Modeling

• •
  Model wrappers implemented for RF3, Protenix, Boltz-1, and Boltz-2 (MD and X-ray modes)
• •
  Initial test set of ~50 structures from PDB prepared with altlocs; electron density maps being generated
• •
  Evaluation metrics: RSCC, LDDT, clash scores, backbone and sidechain geometry

Infrastructure and Publishing

• •
  H100 SXM5 GPUs available via bare metal (8× GPU configurations)
• •
  Two usage patterns supported:

  • ◦
    • ▪
      Workspaces: Interactive environments for experimental work, debugging, and visualization
    • ▪
      Workflows: Hardened, scalable pipelines for production analysis
• •
  The DiffUSE web app now provides resource checkout, visibility into running resources, and SSH/Jupyter access
• •
  Custom container management enables workspace pausing and environment customization
• •
  Workflow orchestration via Prefect and Docker

• •
  Storage: Core Backblaze storage (S3-compatible) with OSN bucket integration for beamline data
• •
  Access: Automatic mounting to Voltage Park resources, plus web app download, CLI, Python SDK, and API
• •

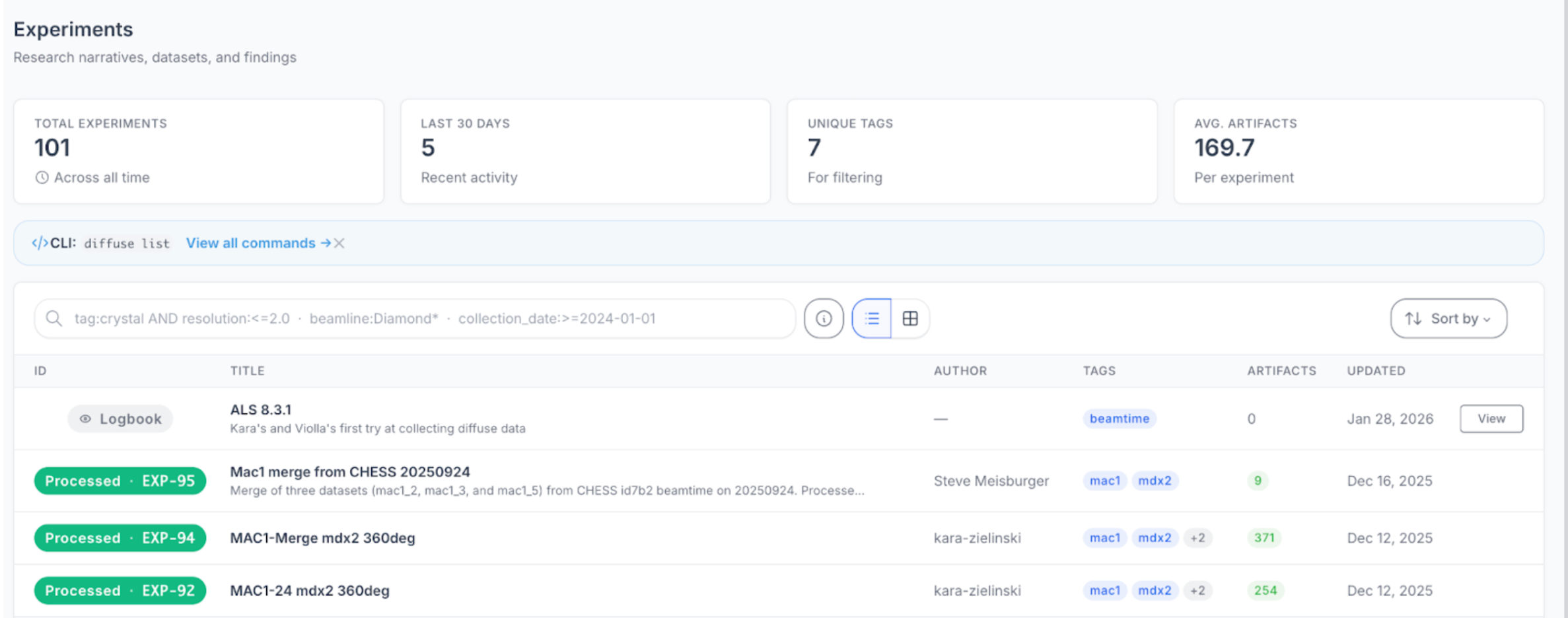

  Metadata: Experiments have artifacts, optional markdown content (like logbook entries), relationships to other experiments, and tags
• •
  Automation: Beam-trip data automatically triggers experiment registration; dataset files populate metadata fields
• •
  Governance: Standards compliance checking, staging-to-public workflows, DOI attachment decisions

• •
  When to stage data privately vs. make everything open immediately
• •
  When to attach DOIs (content should be largely immutable)
• •
  External database destinations: SBGrid Databank, PDB, Zenodo

Open Science

Reflections on Our Distributed Model

What's Next?

Data Collection (3-month goals)

• •
  Collect data on additional systems; collect lysozyme at ALS
• •
  Optimize sample handling for intermediate temperatures (oil-based approaches)
• •
  Explore serial crystallography approaches (chip types, small wedges, crystal size variation)
• •
  Continue investigating cryo options (traditional, NANUQ, high-pressure cryocooling)

Data Processing (2026 goals)

• •
  Improve mdx2 performance (~2× speedup)
• •
  Implement GOODVIBES and DISCOBALL in Python (JAX)
• •
  Fully explore serial crystallography processing
• •
  Deploy on Ando lab Galaxy server; add mdx2 tools
• •
  Develop "Cryosparc for diffuse" project roadmap

MD Simulations

• •
  Continue model/data comparisons and refine MD models (protonation states, parameterization)
• •
  Expand to new systems and additional ligand/mutation perturbations
• •
  Explore how MD optimizations can support other DiffUSE activities (ML modeling, diffraction image simulation, data processing validation)

ML Modeling

• •
  Scale up Sampleworks evaluation across initial test set
• •
  Improve water prediction models (retrain SuperWater with better data, explore flow matching vs. diffusion)
• •
  Quantify water model precision requirements by systematically perturbing well-supported waters
• •
  Progress toward reciprocal space/Bragg peak guidance, ultimately targeting diffuse data guidance

Infrastructure

• •
  Finalize containerized workspace management with pause/resume capability
• •
  Expand workflow orchestration options
• •
  Refine data governance workflows for staging → public → external database publication

Open Science

• •
  Address identified barriers to sharing
• •
  Establish timelines for DOI attachment and external database deposition
• •
  Continue documentation through blog posts and logbooks
